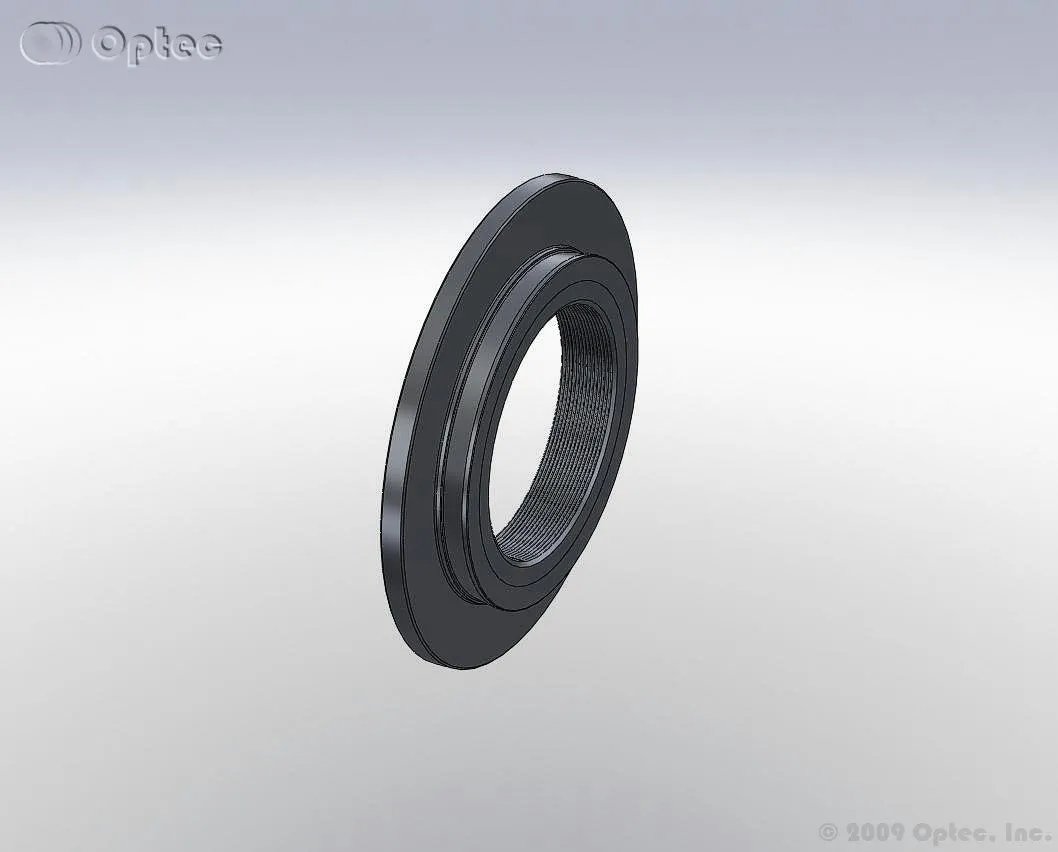

The Vixen VMC mount screws directly into the fine 65mm male thread of the Vixen VMC Telescopes including the VMC260. This mount presents the OPTEC-3600 dovetail for attachment of any device with an OPTEC-3600 receiver.

Specifications

Camera-side Compatibility:

• TCF-S3 series focuser,
• Pyxis 3" rotator,
• Perseus 4-port instrument selector,
• Any OPTEC-3600 receiver.
• Overall Height: 0.615" (15.6mm)
• Clear Aperture: 2.57" (65.2mm)
• Weight: 8.0 oz (225 g)
• Back-focus Usage: less than 0.25" (6.35mm)
